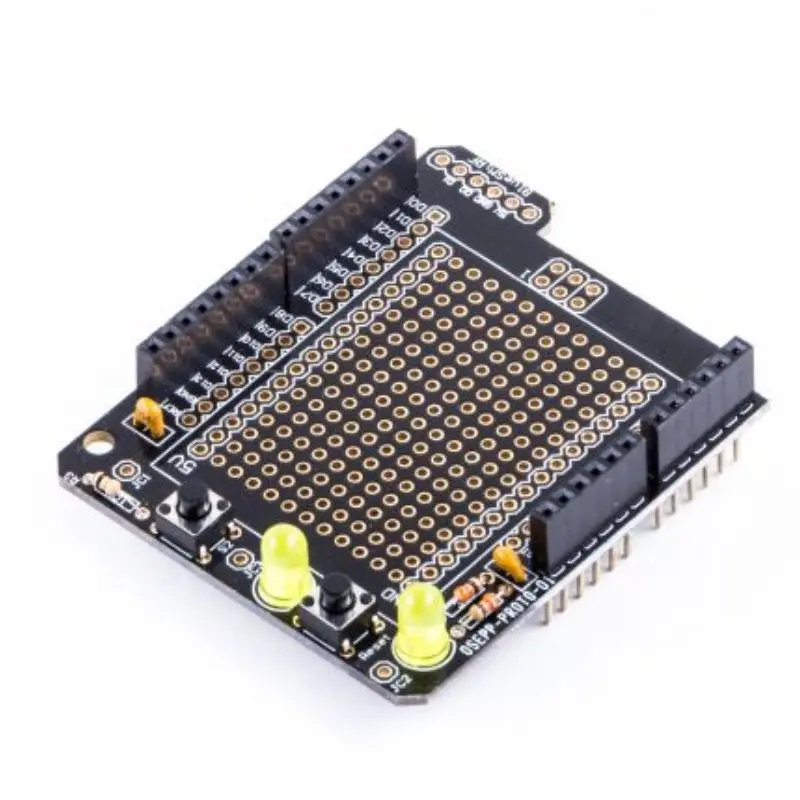

Proto-01 Breadboard-Friendly Prototyping Shield For Arduino

Description

Proto Shield

This Prototyping shield brings a small prototyping area to your Arduino for you to build your projects on. It includes two general purpose LEDs with resistors ready to use just connect the anode pin to your Arduino. Also includes a user pushbutton with a pullup resistor and brings the Arduino reset button to the shield. The Arduino headers are duplicated to solder pins on the board so you can stack with other shields without losing access to your headers. Fits a 47mm x 36.5mm mini breadboard.

Features:

13?16 0.1? pitch prototyping area
Two LEDs with the anode pin exposed (JC2 JC3)
Arduino Reset button
A User pushbutton with Pullup (JC1)
BlueSMiRF header
